Titanium alloy bars with high manganese steel inserts and hardfacing hammers, MANGANESE CAST STEEL HAMMERS with TiC inserts FOR crusher...

Luoyang Zhili New Materials, established in 1992, is one of the leading processing centers for wear-resistant materials in the world, providing high-quality service for wear parts in the mining, cement, power plant, steel, coal, and other industries.

Zhili New Materials

The high-manganese steel hammer is a crushing hammer commonly used in the mining and cement industries. High-manganese steel has high impact toughness and good work hardening capacity, making it safe and reliable. However, its initial hardness is low and it is not resistant to wear under low-impact conditions and to wear from sharp abrasive particles. In view of this, Luoyang ZHILI has developed titanium alloy bars with high-manganese steel inserts and hard-coated hammers to improve the wear resistance of the hammers and increase their service life.

1 Introduction to Alloy Bars and Hardfacing

The alloy bar is made of cemented carbide bonded to steel, suitable for the heat treatment process of high-manganese steel. The main wear-resistant particles are tungsten carbide (WC) and titanium carbide (TiC). The binder is alloy steel. It is made by powder metallurgy and has high hardness, high wear resistance, and a certain impact toughness. Alloy bars can be placed in areas that require wear resistance, such as those needed to resist cutting by hard materials, exhibiting excellent wear resistance. Titanium alloy bars with high-manganese steel inserts adopt out-of-furnace refining and integral die casting technology. They are cast and processed by embedding carbide bars on the hammer working surface.

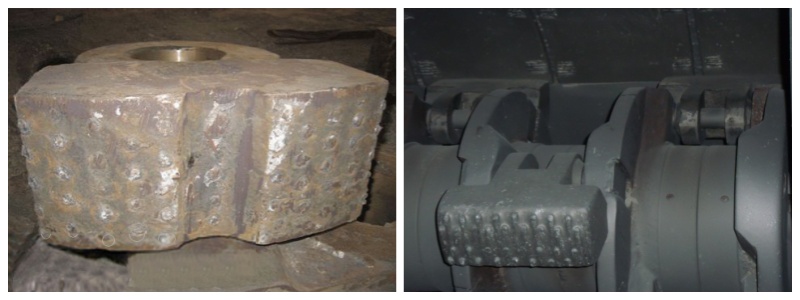

Images of Hammers with Titanium Alloy Bars with High Manganese Steel Insert

Hardfacing is a technology that uses a welding process to deposit filler metal onto the surface of metal materials or parts. The weld layer usually consists of two layers, and the thickness of the hardfacing layer is 5 to 6 mm. It is widely used in the manufacture and repair of castings with wear resistance, corrosion resistance, or special performance requirements. Hardfacing hammers can improve the wear, heat, and corrosion resistance of hammers.

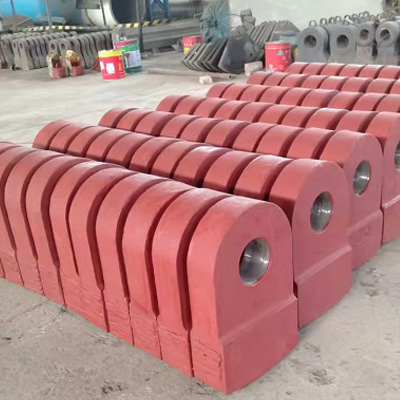

Images of Hardfacing Hammers

2 Scope of application of titanium alloy bars with high manganese steel insert and hardfacing hammers

In summary, the cast alloy bar and hardfacing aim to improve the wear resistance and service life of the hammer. These characteristics of titanium alloy bars with high manganese steel inserts and hard-lined hammers make them suitable for twin rotor crushers, clinker crushers, and crushing equipment with good limestone crushing capacity, large feed particle size, high crushing capacity, and long cycle times, as well as various complex and severe working conditions.

Titanium alloy bars with high manganese steel insert And the hardfacing hammers produced by our company have been widely used in renowned cement plants such as Lafarge and Cemex, and have received good market acceptance. Friends who want to know more can send us an email and we will reply as soon as possible. Our email is cnwearparts@lyzhili.com.

---
