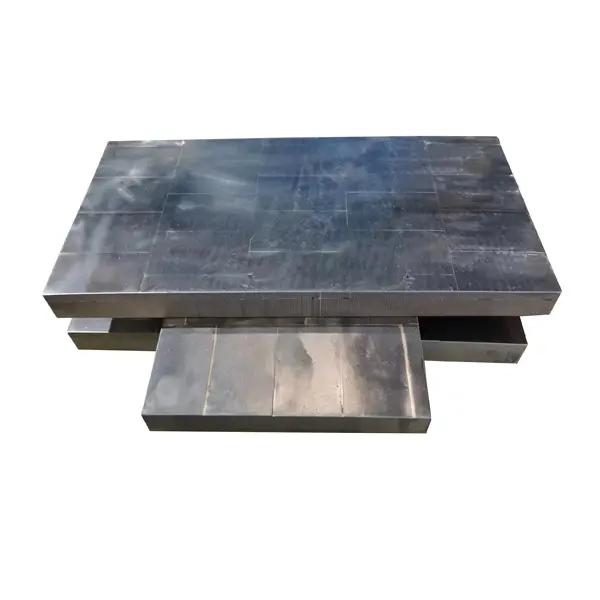

Cheek plate

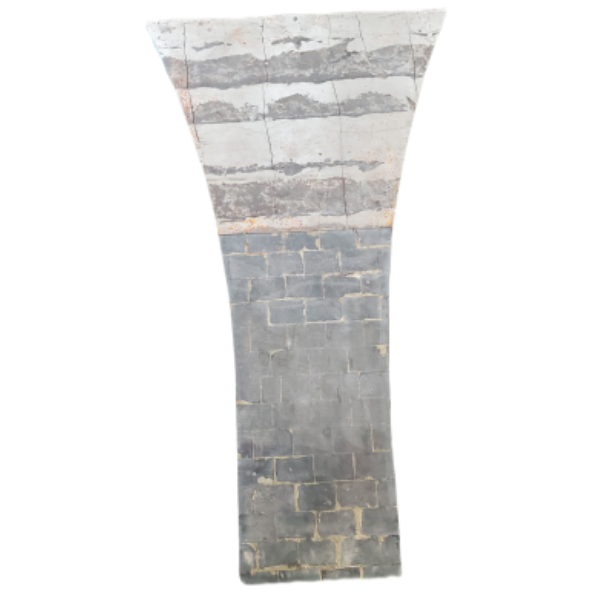

Roller press side deflector

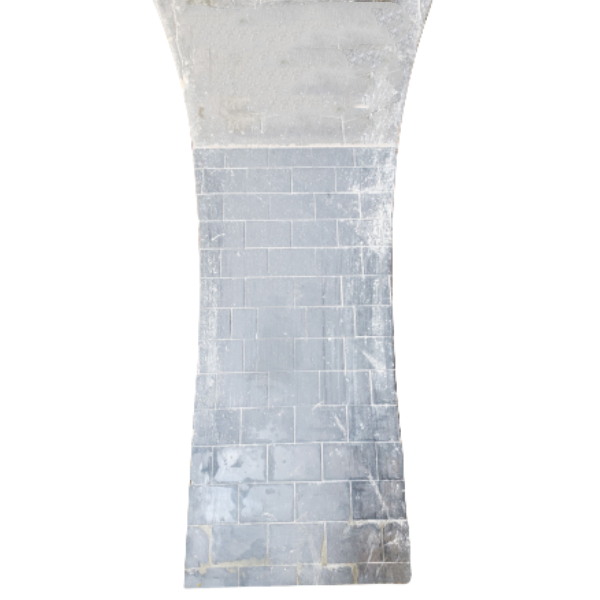

Tungsten carbide side deflector
Cheek plate
Side deflector for roller press/cheek plate
Global Sales Custom OEM Design
Product Name: Roller Press Side Deflector/Tungsten Carbide (WC) Side Deflector
Production Process: Casting
Material Types: Tungsten carbide, wear-resistant cast iron, composite steel plate, etc.
Applicable Industries: cement, metallurgy, chemical industry, steel industry, pellets, etc.
Our Service:
1. Before the sale, we will fully understand the customer's working conditions and recommend the most suitable material selection.
2. We will provide customers with drawings based on their machine models, spare parts dimensions, etc.
3. After the sale, we will continue to monitor the product's use and provide timely assistance.
If you need detailed technical information about the product or cannot find the desired product on the website, please send an email to (info@lyzhili.com), as we are a factory specializing in wear-resistant castings.
The side baffle of the roller press is an important device for limiting material on both sides of the roller. It plays a vital role in reducing material leakage on both sides, reducing the edge effect of the roller press and improving the work efficiency of the roller press. Tungsten carbide plate and steel plate are effectively combined to produce a tungsten carbide composite plate. While it has the superior wear resistance of tungsten carbide, it solves the problem that tungsten carbide materials cannot be welded and installed with the mounting base.
When the gap between the side baffle and the end face of the roller is small, the side baffle is subjected to the extrusion force of the material between the rollers, while also supporting the abrasion of the material. Under such high-stress wear conditions, the side deflector is very prone to wear, especially in the area with the smallest gap between the two rollers, where wear is fastest. Through wear test data and verification of actual on-site use, our company's tungsten carbide side deflector is used in mine high-pressure roller mills, with a service life of up to 6 months. Used in cement and raw material roller presses, the service life can reach more than 10 to 12 months.

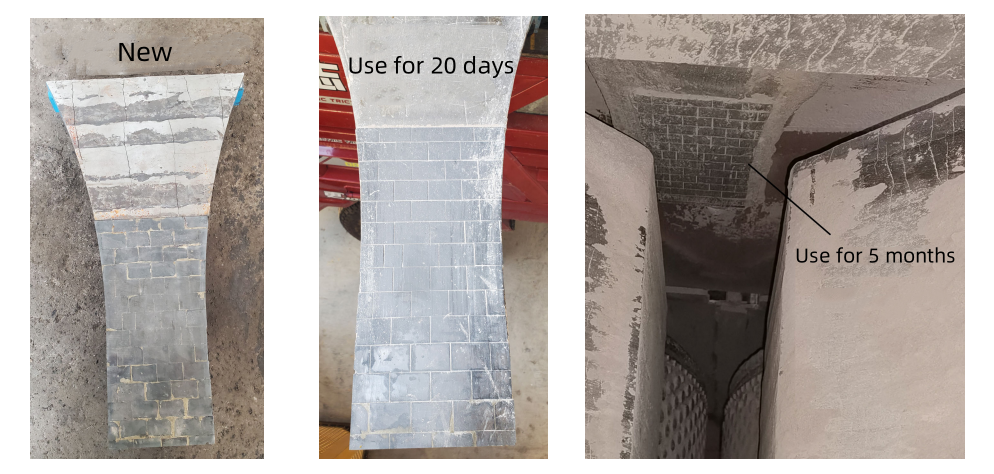

Wear diagram of the tungsten carbide side deflector
