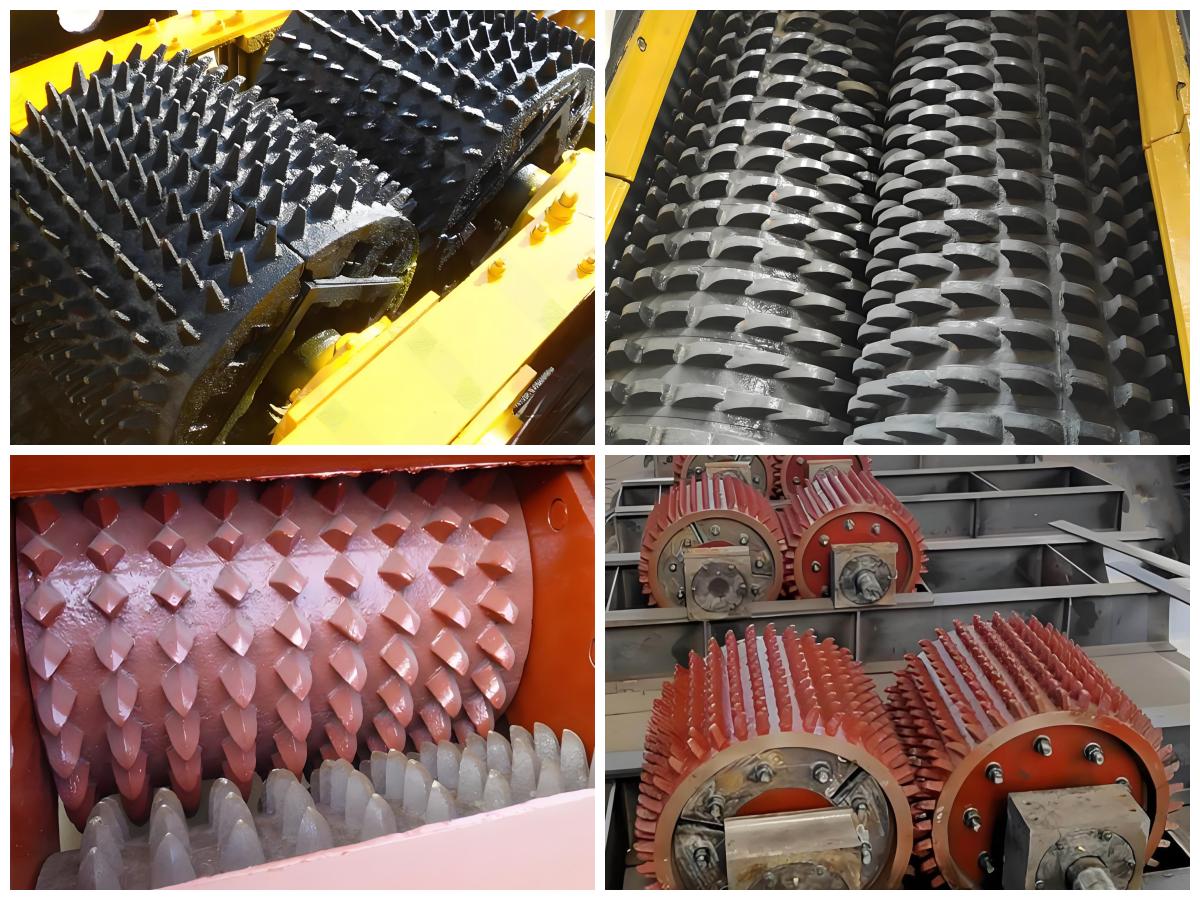

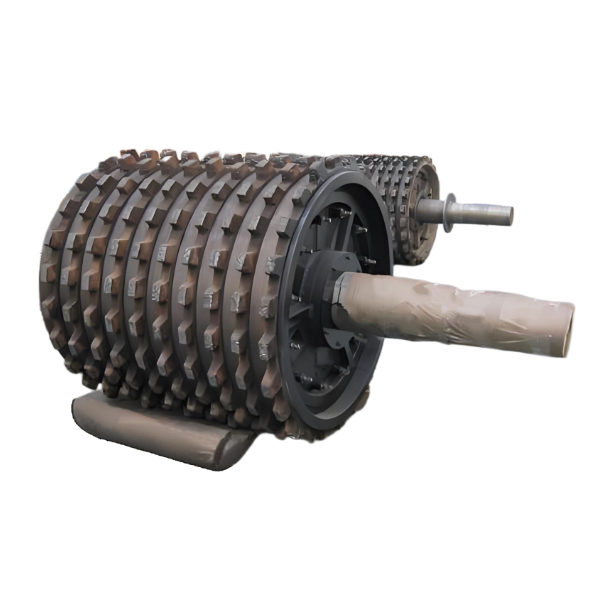

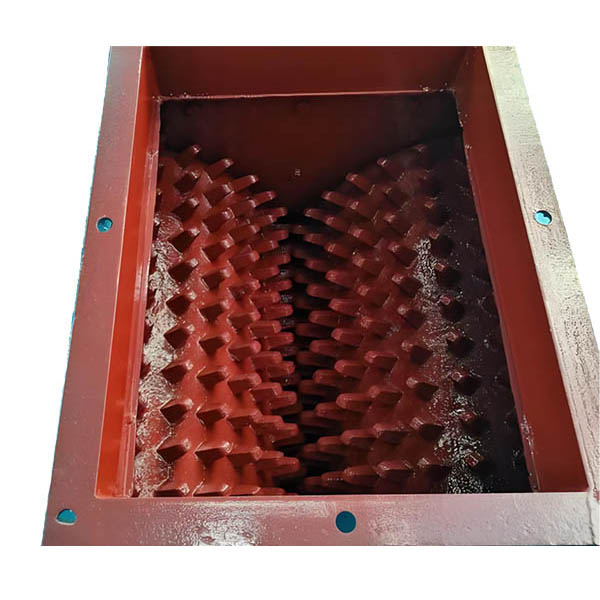

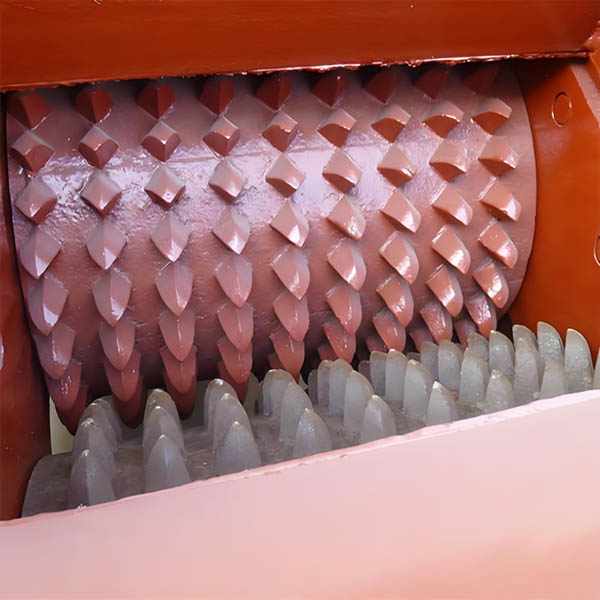

Toothed crusher roller
toothed roller
Toothed crusher roller
Toothed crusher roller
toothed roller
Toothed crusher roller
Global sales OEM customized design
Product Name: Toothed roll for crushing, Toothed roll, Crushing roll, Lining roll, Sleeve roll
Production Process: Casting
Applicable Machines: Double tooth roll crusher, single tooth roll crusher, four tooth roll crusher, classifying crusher, etc.
Applicable Industries: Cement, stone, mining, coal, steel, metal recycling, etc.
Suitable Materials: Granite, basalt, limestone, river pebbles, slag, glass, etc.
Types of Materials: High-manganese steel, alloy steel, high-chromium cast iron, bimetallic composite, etc.
Our Service:
1. Before the sale, we will fully understand the customer's working conditions and recommend the most suitable material selection.
2. We will provide customers with drawings based on their machine models, spare parts dimensions, etc.
3. After the sale, we will continue to monitor the product's use and provide timely support.
4. We offer free quotes, worldwide sales, short delivery times, and low prices.
If you require detailed technical information about the product or cannot find the desired product on the website, please send an email to(cnwearparts@lyzhili.com), as we are a factory specializing in spare parts for crushers.
Recommended materials for wear resistance:
High-manganese steel: A traditional material that hardens and becomes wear-resistant under strong impact.
Alloy steel: Such as 42CrMo, it offers excellent comprehensive mechanical properties.
High-chromium cast iron/bimetallic composite: The current leading high-quality option. The teeth are made of highly wear-resistant high-chromium cast iron, while the roller core is made of high-toughness carbon steel. This composite casting process results in a service life 2 to 3 times longer than that of traditional materials.
Advanced Manufacturing Process
Various tooth profiles: pin, knife, corrugated, and customizable.
Overlay technology: In the manufacture of new rollers or the repair of old rollers, extremely hard alloys, such as tungsten carbide, can be applied to the surface, significantly improving wear resistance.
Heat treatment technology: Through processes such as quenching and tempering, the hardness and toughness of the roller surface and core are optimized.
Gear sleeve/ring design: The gear roller is no longer a single unit. Instead, a sleeve or ring made of highly wear-resistant alloy steel is mounted on a tough carbon steel roller core.
