Product Name:Crusher Linings/Mill Linings/Vertical Mill Lining/SAG Mill Linings
Production Process: Casting
Applicable Machines: crusher, vertical mill, ball mill, SAG mill, rod mill, etc.

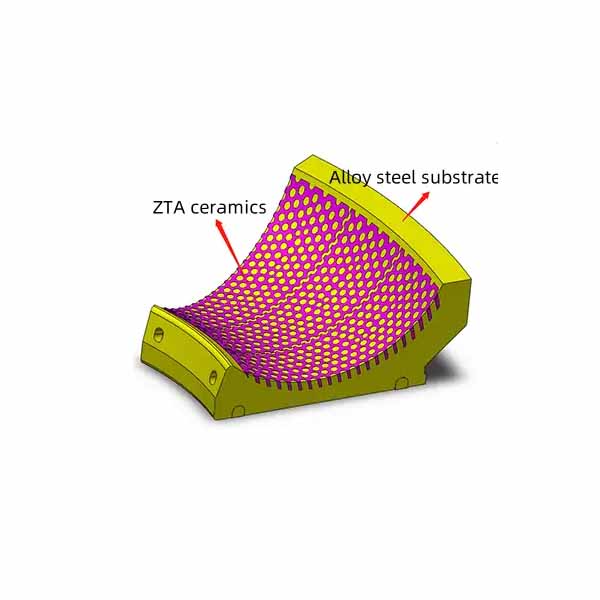

Types of materials: High manganese steel, bimetallic composite, high chromium cast iron, alloy steel, high manganese steel + alloy bar, chromium-molybdenum alloy steel, nickel-plated hard cast iron, ceramic-metal composite, etc.
Applicable industries: Mining, cement plants, coal, steel, etc.
Our service:
1. Before the sale, we will fully understand the customer's working conditions and recommend the most suitable material selection.
2. We will provide customers with drawings based on their machine models, spare parts dimensions, etc.
3. After the sale, we will continue to monitor the product's use and provide timely assistance.
If you need detailed technical information about the product or cannot find the desired product on the website, please send an email to (info@lyzhili.com), as we are a factory specializing in spare parts for crushers.
We can supply high-quality liners for various crushers, vertical mills, ball mills, and semi-autogenous mills. Materials can be customized to suit your working conditions to extend service life and improve efficiency.

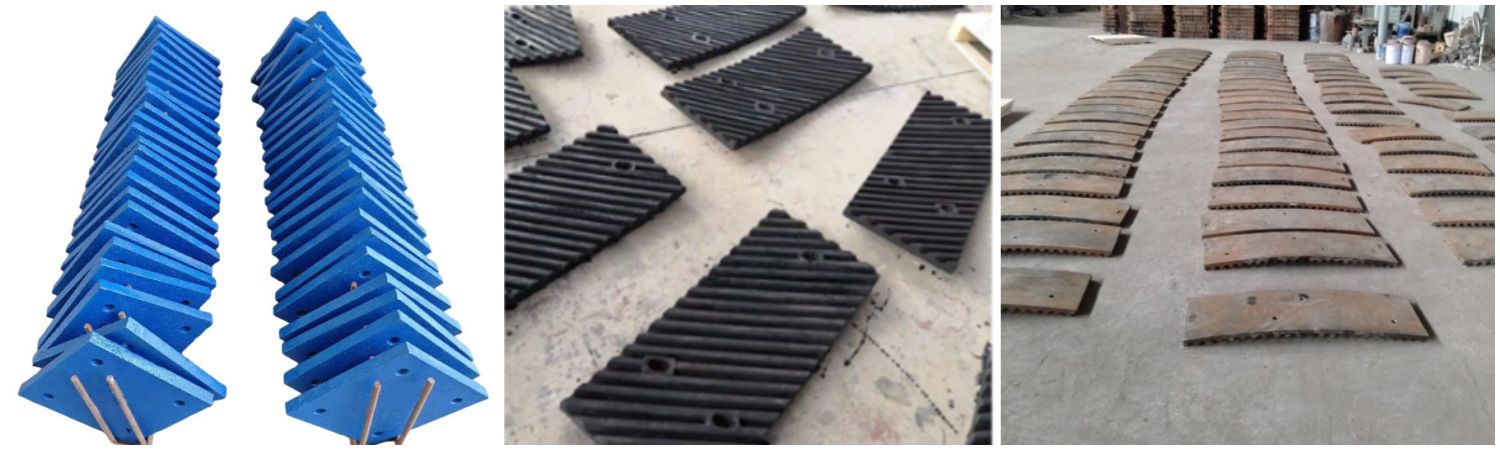

Crusher linings

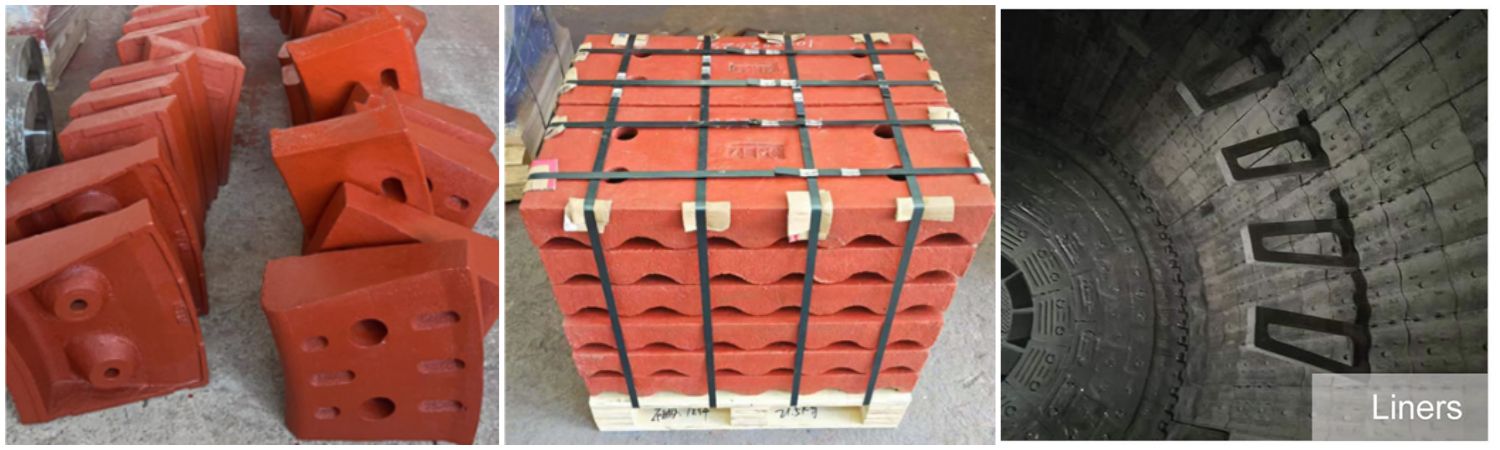

Mill linings

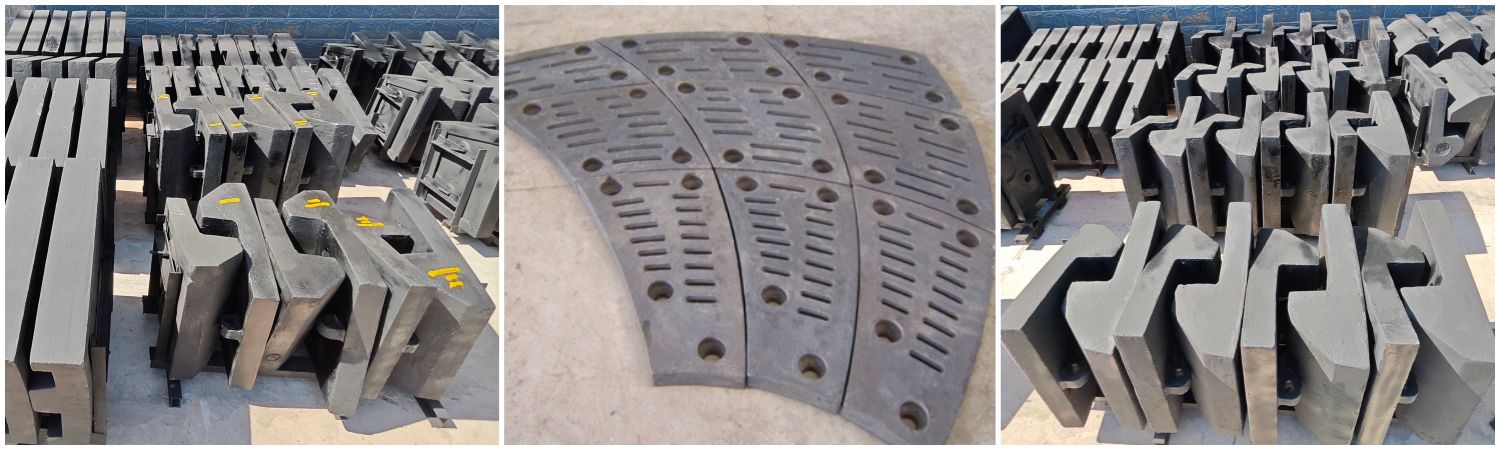

SAG mill linings

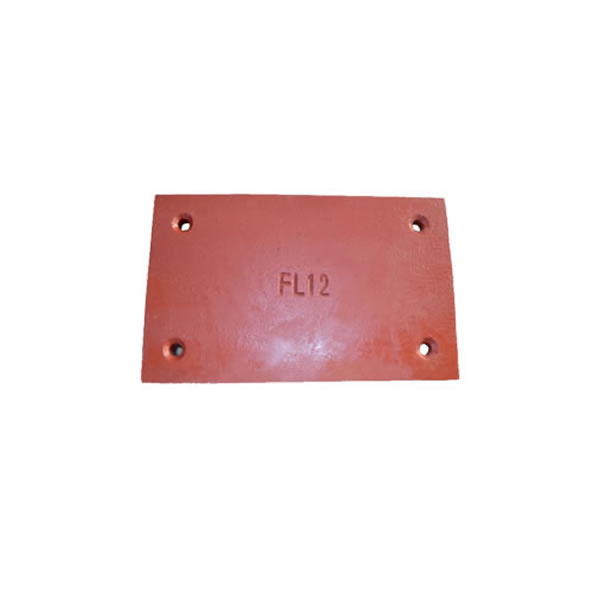

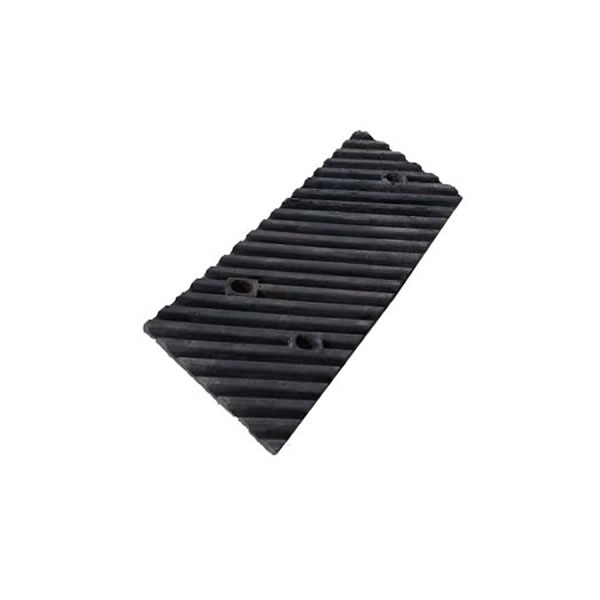

Product material: High chromium cast iron
Raw material chemical formula: BTMCr15
Hardness: HRc50 ~ 58
Applications: Clinker silo protectors in cement plants, port machinery chute linings, steel mill hopper linings, high wear-resistant plates for port machinery silos, wear-resistant protective plates for coal bunkers.
| High-chromium cast iron cement mill lining | |
|---|---|
| Mill lining thickness: | 18mm, 15mm, 20mm, 15mm, 30mm, 32mm, 40mm, 50mm, 60mm, 80mm, 100mm; |
| Section thickness: | 1", 2", 3", 4", 5", 8", 10", 20", 30", 40". |

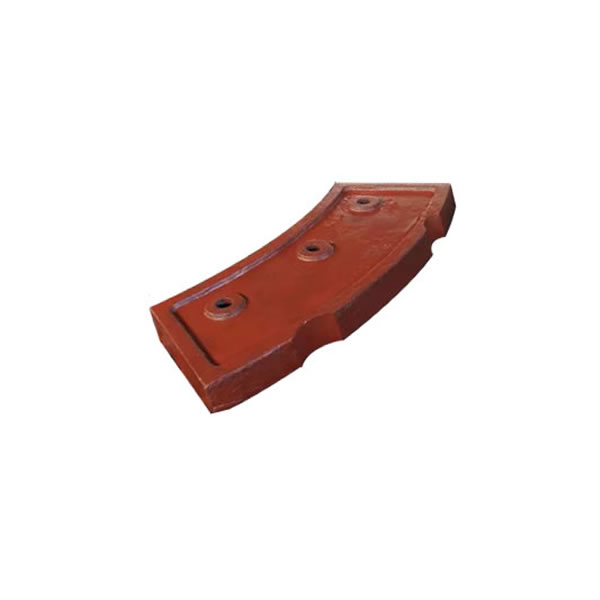

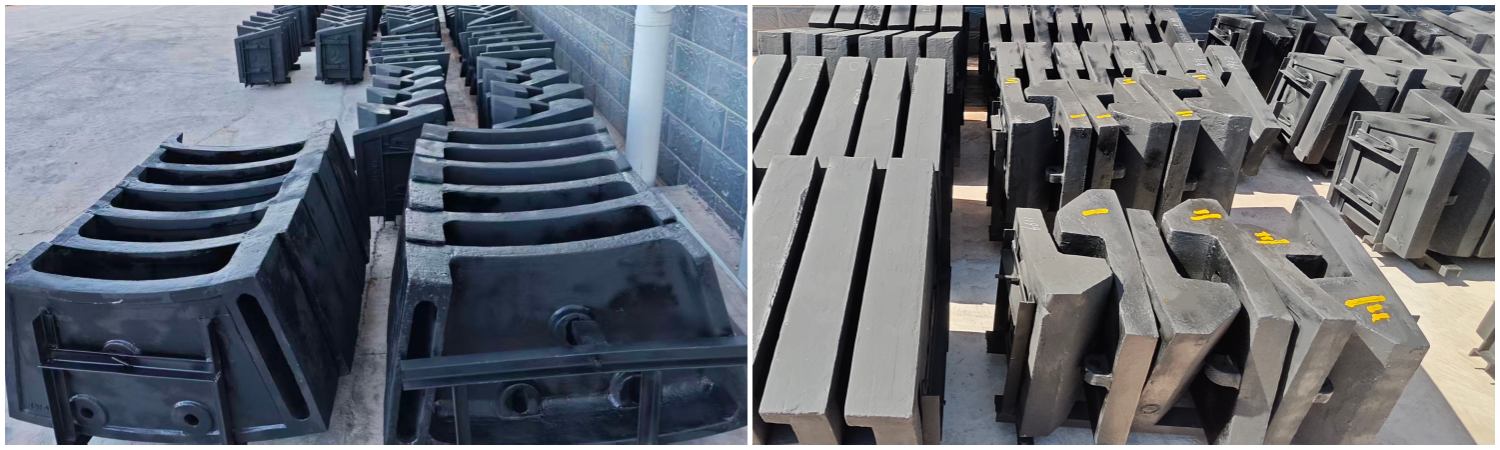

Product Material: Chromium-molybdenum alloy steel
Applications: Cement mill, coal mill in power plants, ball mill in mines, autogenous mills and semi-autogenous mills.
Chromium molybdenum steel alloy mill lining | |||||||
|---|---|---|---|---|---|---|---|
| Chemical component % | C | Si | Mn | Cr | Mo | P | S |
| AS 2017/L2A | 0.45-0.55 | ≤0.75 | 0.50-1.00 | 0.80-1.20 | – | ≤0.04 | ≤0.04 |
| AS 2017/L2B | 0.55-0.65 | ≤0.75 | 0.50-1.00 | 0.80-1.50 | 0.2-0.4 | ≤0.04 | ≤0.04 |
| AS 2017/L2C | 0.70-0.90 | ≤0.75 | 0.50-1.20 | 1.30-2.40 | 0.2-0.4 | ≤0.04 | ≤0.04 |
