Product Name:Hammer Crusher Rotor/Hammer Disc/Hammer Shaft/Rotor Disc/Impact Crusher Rotor/VSI Crusher Rotor
Production Process: Casting
Applicable Machines: Clinker crusher, impact crusher, raw material crusher, auxiliary material crusher, metal crusher, VSI crusher, etc.
Applicable Industries: cement, stone, coal, steel, metal recycling, etc.
Types of Materials: high manganese steel (Mn13Cr2/Mn18Cr2), high manganese steel inserts, alloy bars, high manganese steel + hard coating layer, Q690, Q550, Q345, etc.
Our service:
1. Before the sale, we will fully understand the customer's working conditions and recommend the most suitable material selection.
2. We will provide customers with drawings based on their machine models, spare parts dimensions, etc.
3. After the sale, we will continue to monitor the product's use and provide timely assistance.
If you need detailed technical information about the product or cannot find the desired product on the website, please send an email to (info@lyzhili.com), as we are a factory specializing in spare parts for crushers.

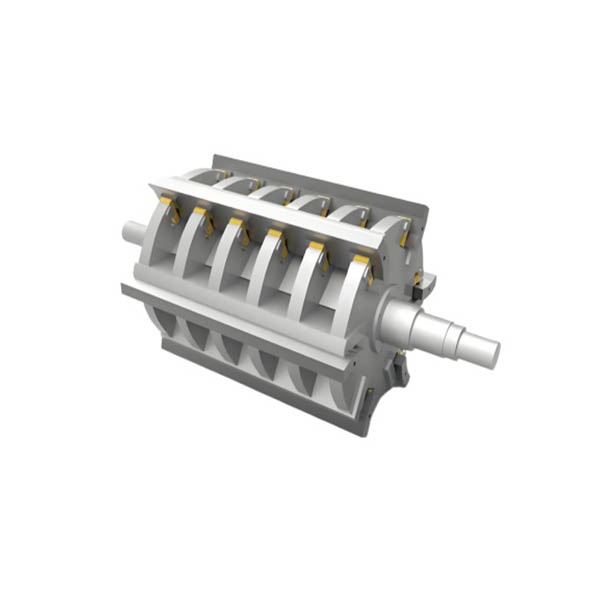

The crusher rotor is the heart of the hammer crusher. The hammer crusher rotor consists of a main shaft, a hammer frame, and hammer heads. The rotor size varies according to the specifications of each hammer crusher. Zhili New Materials utilizes advanced finite element analysis technology to effectively improve crusher rotor design and extend its service life.

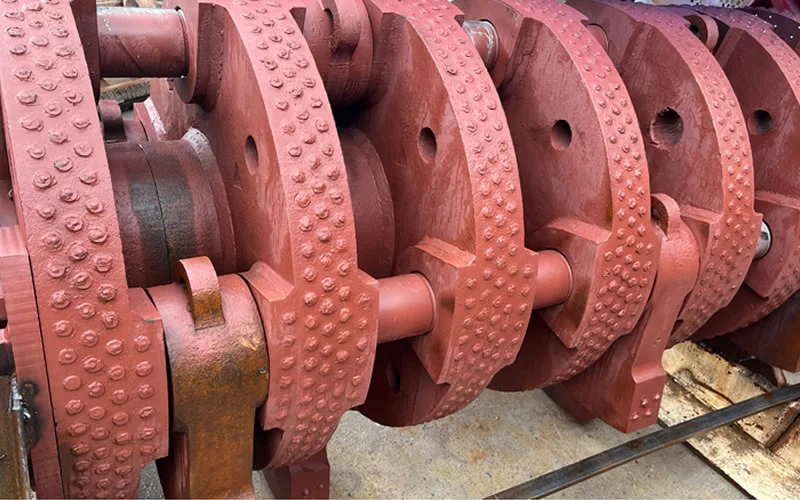

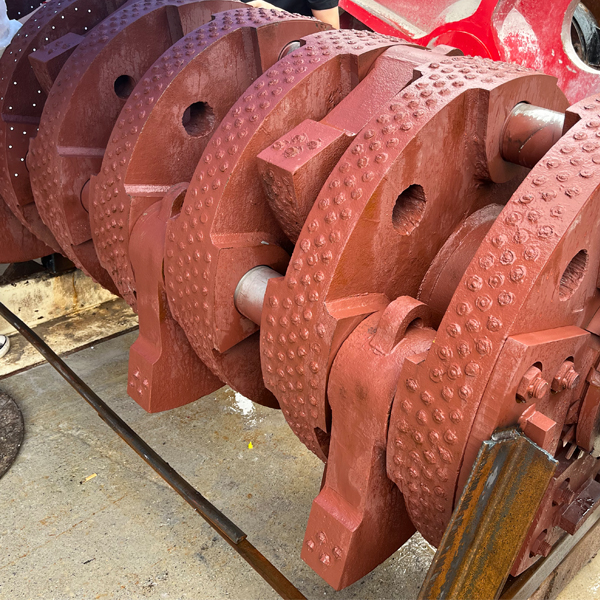

Hammer crusher rotor: Alloy bars with high manganese insert

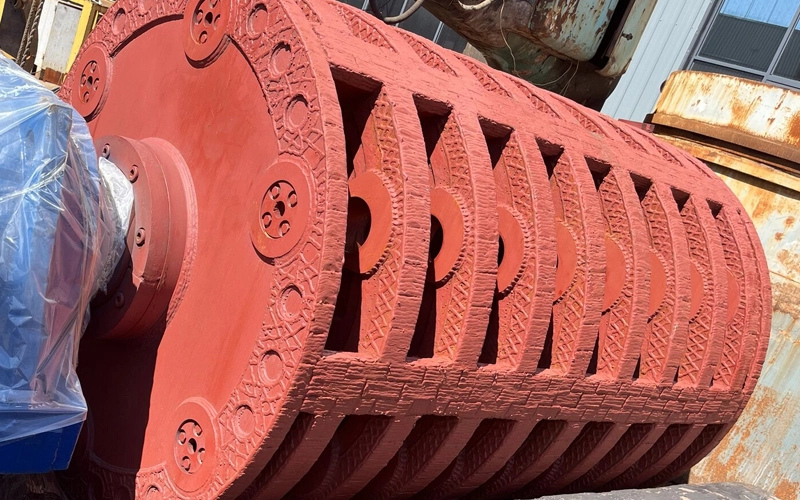

Hammer crusher rotor: high manganese steel + coating

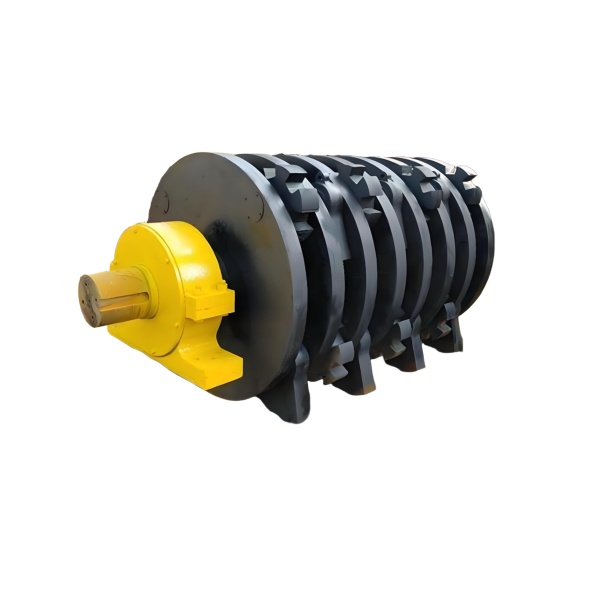

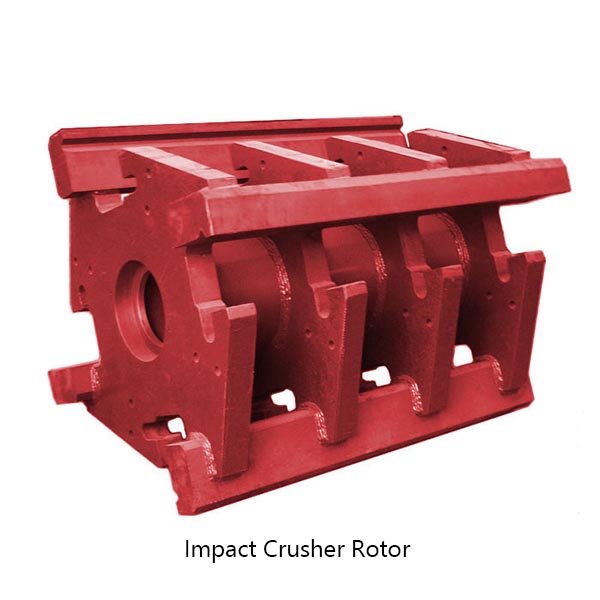

The rotor assembly of the impact crusher includes the main shaft, drum, bearings, impact bar, deflector, protective plate, pressing block, protective plate, deflector, and bearing seat.
The impact bar material of the impact crusher is high manganese steel, ceramic metal composite, high manganese steel alloy bars (α), etc. The optimized crescent-shaped impact bar ensures vertical impact of materials, with strong impact force and high crushing efficiency. Its impact surface is larger than that of a linear impact bar, making it more durable.
The impact bar is fixed to the rotor by wedges, and the contact surface between the wedge and the belly plate is trapezoidal. This fastening method ensures that the higher the rotor speed, the more firmly the impact bar will be fixed, making it more reliable and convenient for disassembly and assembly. The bearing seat of the impact crusher equipment is made of integral cast steel and fixed to the frame by bolts. The combination of the integral bearing seat and the bearing is more compact, which can prevent the bearing from jumping out. The bearing seat of the impact crusher equipment is made of integral cast steel and fixed to the frame by bolts. The combination of the integral bearing seat and the bearing is more compact, which can prevent the bearing from jumping out.

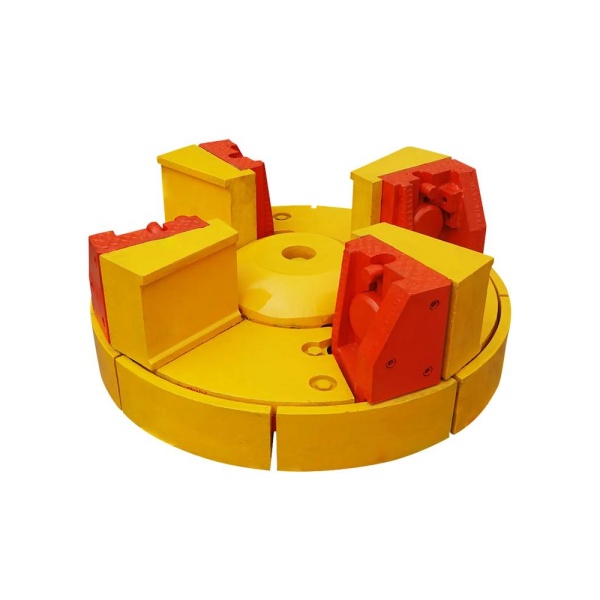

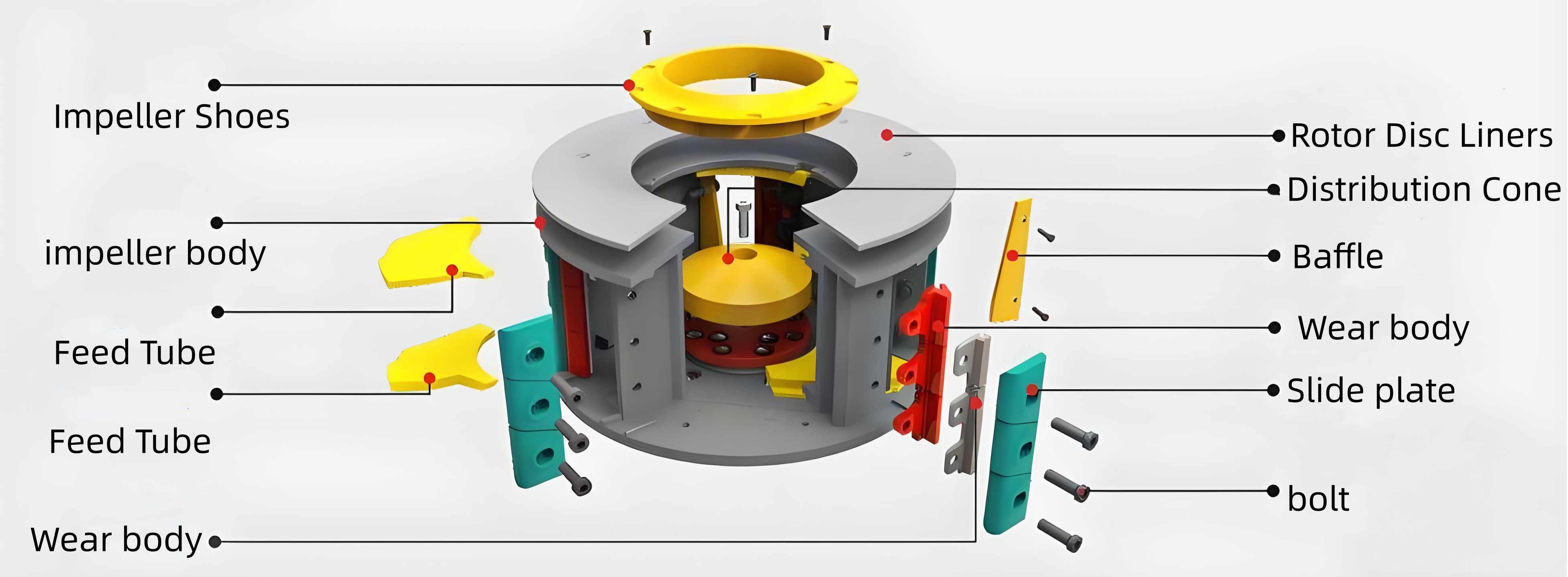

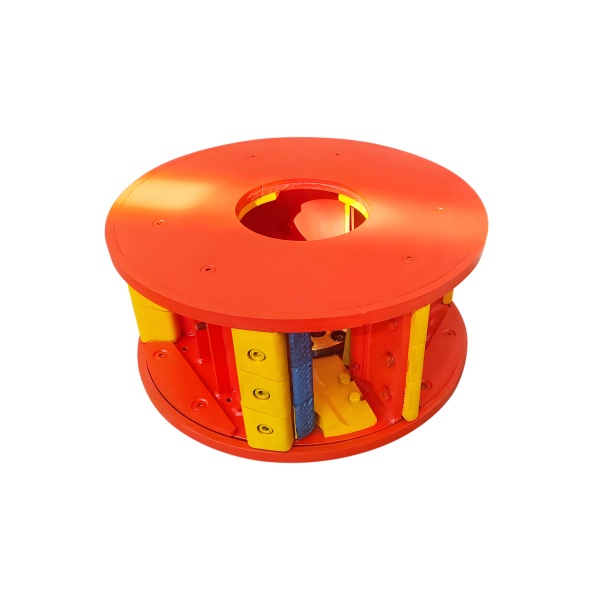

We manufacture components for vertical shaft impact crusher (VSI) rotor assemblies, including rotor body, feed tube, feed ring, rotor disc liner, rotor shaft, deflector, wear blocks, bolts, distributor cone, and other wear-resistant parts.
We specialize in producing rotors that integrate advanced materials, precision engineering, and rigorous quality control. Our VSI crusher rotors are constructed from high-quality, high-manganese steel, offering excellent wear resistance and toughness, making them ideal for withstanding the intense wear and impact forces generated during the crushing process.
