U-Type Cover Plates
Heat-resistant steel cover
U-shaped roofing panels
Global sales Custom OEM Design

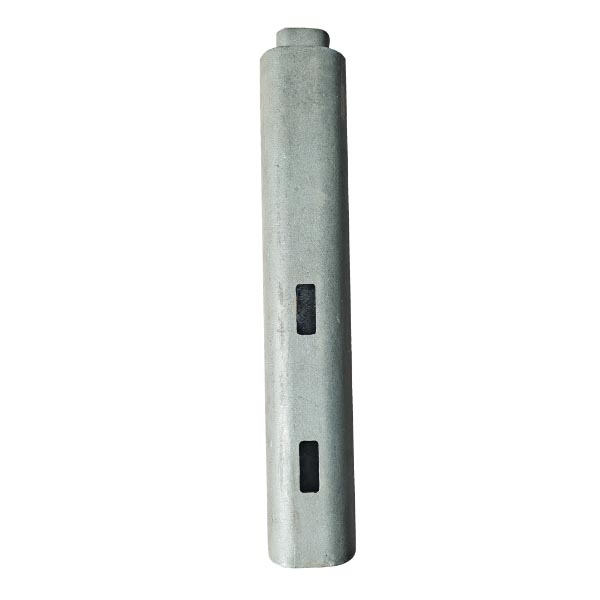

Product Name: Grill Cooler Cover Plates/Heat-Resistant Steel Cover Plates/Sealing Cap
Production Process: Casting, Lost Foam Casting, V-Method Casting
Types of Materials: ZG40Cr28Ni20, 12Cr1MoV, 25Cr2MoVA, 12Cr2MoWVTiB, low-alloy heat-resistant steel, low-chromium-nickel oxidation-resistant steel, etc.
Applicable Industries: Cement, metallurgy, chemical industry, architecture, steel industry, etc.
Our service:
1. Before the sale, we will fully understand the customer's working conditions and recommend the most suitable material selection.
2. We will provide customers with drawings based on their machine models, spare parts dimensions, etc.
3. After the sale, we will continue to monitor the product's use and provide timely assistance.
If you need detailed technical information about the product or cannot find the desired product on the website, please send us an email (info@lyzhili.com), as we are a factory specializing in heat-resistant steel castings.

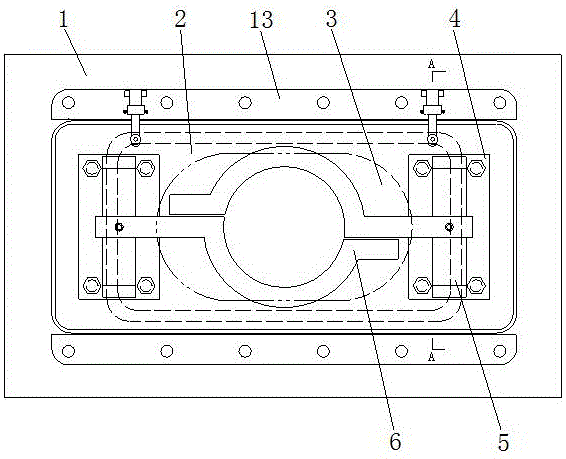

The grate cooler sealing plate has a U-shaped structure. The upper surfaces of the two grate plates are fixed with spacers corresponding to the grooves of the sealing plate. The two side plates of the sealing plate are positioned respectively over the two grate plates. The lower surface of the side plate fits into the upper surface of the grate plate to form a flat friction seal, and the spacers are fitted into the corresponding grooves.
The sealing plate mainly performs the following functions:
(1) Protect the drive plate;
(2) Block airflow, i.e., prevent or reduce air leakage from the airflow chamber from the process opening;
(3) Prevent material from the grate plate from falling into the wind chamber from the process opening, causing wear on other parts.
