Case study of the use of a limestone crusher hammer in a cement plant.

In 2023, a cement factory in Qatar ordered a set of limestone crusher hammers from our factory. The material is high-manganese steel encrusted with alloy bars and a lining. In 2024, this batch of hammers was installed, with a total output of 866,162 tons and a cost of US$0.03 per ton. The specific usage analysis is as follows....

Luoyang Zhili New Materials, founded in 1992, is one of the world's leading processing centers for wear-resistant materials, providing high-quality wear parts services to the mining, cement, power plant, steel, coal, and other industries.

Zhili New Materials

In 2023, a cement factory in Qatar ordered a set of limestone crusher hammers from our factory. The material is high manganese steel encrusted with alloy bars and lining. In 2024, this batch of hammers was installed, with a total output of 866,162 tons and a cost of US$0.03 per ton. The specific usage analysis is as follows:

1,000 tons of limestone are crushed per hour, and the limestone crusher operates 16 hours a day.

DATA

PRODUCTION TONNAGE

JOB DESCRIPTION

09.03.24 to 27.03.24

163,888.00

Zhili hammer set installed

28.03.24 to 14.04.24

168,309.00

28/03/24 End hammer shuffling

14/4/24 End hammer shuffling

14.04.24 to 28.04.24

150,093.00

28/4/24 End hammer shuffling

28.04.24 to 12.05.24

125,872.00

12/5/24 End hammer shuffling and total hammer reversing

12.05.24 to 26.05.24

125,000.00

26/5/24 End hammer shuffling

26.05.24 to 09.06.24

133,000.00

09/6/24 hammer set removed

Actual Life time

866162.00


1 Ton

 0.03


In 2023, a cement factory in Qatar ordered a set of limestone crusher hammers from our factory. The material is high-manganese steel encrusted with alloy bars and a lining. In 2024, this batch of hammers was installed, with a total output of 866,162 tons and a cost of US$0.03 per ton. The specific usage analysis is as follows:

1,000 tons of limestone are crushed per hour, and the limestone crusher operates 16 hours a day.

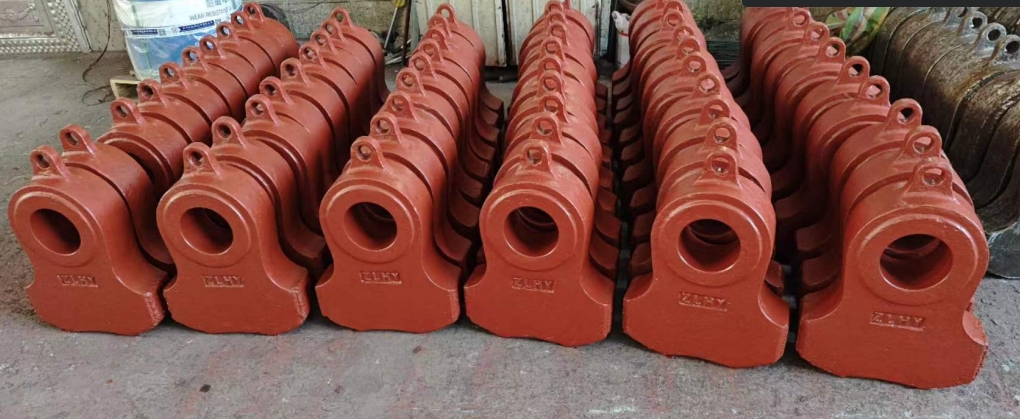

Hammer crusher produced by our company

Use case of limestone crusher hammer in cement plant
